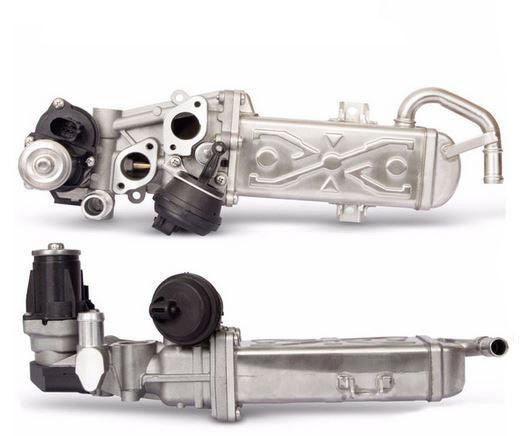

The EGR Valve Volkswagen PASSAT Variant (3C5) -1.6 TDI serves to reduce nitrogen oxide (NOx) emissions generated by incomplete combustion of fuels.
The Volkswagen PASSAT Variant (3C5) -1.6 TDI EGR Valve opens to allow exhaust gases to flow into the intake tract, in order to burn them a second time. It optimizes engine efficiency.
Features :
We are at your disposal via the “ Contact us ” section.
In order to easily find your car and avoid mistakes, you can provide us with the registration in your message.
- Net weight [kg]: 2.2
- Cooling type: water cooled
- Additional article/Additional information: with the 2 gaskets supplied
- Number of connections: 5
- Operating type: electric
equivalent to BOSCH:
0 280 751 012 - 0280751012
equivalent WAHLER:
117255.04 - 11725504
References: OEM:
AUDI, SEAT, SKODA, VOLKWAGEN:
03L131512N - 03L131512AP - 03L131512AT - 03L131512BB - 03L131512BJ - 03L131512BL - 03L131512CF - 03L131512CH - 03L131512DQ
03L 131 512 N - 03L 131 512 AP - 03L 131 512 AT - 03L 131 512 BB - 03L 131 512 BJ - 03L 131 512 BL - 03L 131 512 CF - 03L 131 512 CH - 03L 131,512 DQs
In order to check the EGR valve safely, the best way is to check the inscription on the current EGR valve and see if it matches one of the references above.
Volkswagen engine code: CAYC - CAYD - CFFA - CFFB - CFJA - CFGB - CFHC ... other engines can be equipped with this EGR valve
Non-exhaustive and indicative list, please check the reference written on the EGR valve to be changed.
Volkswagen
BEETLE (5C1)
1.6 TDI > 105 CV - from 11/2011
CADDY III Estate (2KA, 2KH, 2CA, 2CH)
1.6 TDI > 102 CV - from 09/2010
CADDY III Combi (2KB, 2KJ, 2CB, 2CJ)
1.6 TDI > 102 CV - from 09/2010
EOS (1F7, 1F8)
2.0 TDI 16V > 140 CV - from 01/2011 to 03/2013
GOLF PLUS (5M1, 521)
1.6 TDI > 105 HP - from 06/2009 to 03/2013
GOLF VI (5K1)
1.6 TDI > 105 CV - from 06/2009
2.0 TDI > 140 CV - from 06/2009
2.0 TDI 4motion > 140 CV - from 06/2009
2.0 TDI > 170 CV - from 05/2009
GOLF VI Convertible (517)
2.0 TDI > 140 CV - from 12/2011
JETTA III (1K2)
1.6 TDI > 105 CV - from 06/2009
PASSAT (362)
1.6 TDI > 105 CV - from 01/2011
PASSAT (3C2)
1.6 TDI > 105 CV - from 09/2009
PASSAT CC (357)
2.0 TDI > 136 HP - from 07/2008 to 04/2010
2.0 TDI > 140 CV - from 06/2009
2.0 TDI 4motion > 140 CV - from 06/2009
PASSAT Variant (365)
1.6 TDI > 105 hp - from 10/2010
PASSAT Variant (3C5)
1.6 TDI > 105 CV - from 09/2009
SCIROCCO (137, 138)
2.0 TDI > 140 CV - from 10/2008
SHARAN (7N)
2.0 TDI > 140 CV - from 10/2010
2.0 TDI 4motion > 140 CV - from 01/2012
TIGUAN (5N_)
2.0 TDI > 140 HP - from 06/2012 to 01/2013
2.0 TDI 4motion > 140 CV - from 06/2011 to 01/2012
TIGUAN (5N_)
2.0 TDI > 170 HP - from 01/2012 to 12/2012
What causes a faulty EGR valve?
The Volkswagen PASSAT Variant (3C5) -1.6 TDI EGR Valve may be damaged by dirt which prevents it from opening or closing.
Driving with a faulty EGR valve can lead to very rapid fouling of the engine and parts such as the injectors.
What are the symptoms of a faulty EGR valve?
- Loss of power "engine choked"
- Anti-pollution light on
- Vehicle stalls
- Technical inspection refused due to pollution
